Addressing Vibration Issues in Electric Trikes
Electric trikes, encompassing a wide range of models like cargo tricycles, passenger rickshaw trikes, and leisure trikes, are gaining popularity for their versatility and eco-friendliness. However, a common issue that often arises with these vehicles is vibration. During the start-up and operation of electric trikes, users may experience shaking and rattling noises, which can be concerning and uncomfortable. These vibrations are not just limited to personal leisure trikes but are also prevalent in more heavy-duty models such as electric cargo tricycles, used for transporting goods, and electric rickshaw trikes, utilized in passenger commuting. Addressing these vibration issues is crucial, as they can affect the ride quality, safety, and longevity of the trike.
The Importance of Regular Maintenance to Prevent Electric Motor Vibrations
Regular maintenance of an electric trike motor is essential for ensuring a smooth and safe riding experience. Basic steps in maintaining an electric trike motor include routinely checking and tightening loose components, inspecting the motor and battery connections, and ensuring that the trike’s wheels are properly aligned and balanced. The benefits of maintaining an electric trike motor are multifaceted. Proper maintenance helps in preventing excessive vibration, which can lead to motor damage or electrical issues. It also ensures the trike runs smoothly, thereby extending its lifespan and improving overall performance. Regular checks and maintenance can also aid in early detection of issues like loose wires or potential short circuits, which can be addressed before they escalate into more significant problems. For different types of electric trikes, such as those used for heavy cargo or passenger transport, regular maintenance is even more critical due to the additional stress these activities place on the motor and other electrical components.
Causes of Vibration in Electric Trike Motors
E-rickshaw Motor sensor(Hall Sensor) Failure
- Role of the Hall Sensor: The Hall sensor in an electric trike plays a critical role in the motor’s operation. It functions as a type of “speed and position sensor,” sending signals to the trike’s electronic controller to manage the motor’s speed and torque effectively. This component is vital for the smooth operation of electric trikes, including various models like electric cargo tricycles, passenger rickshaws, and leisure trikes. The precise functioning of the Hall sensor ensures that the motor receives the right amount of power at the right time, thereby maintaining the vehicle’s efficiency and stability.
- Symptoms of Failure: Hall sensor failure in electric trikes, such as e-bikes or 3-wheel e-bikes, can lead to a range of symptoms. The most common signs include unusual vibrations, a decrease in power or efficiency, and irregularities in speed control. Riders might notice that the trike struggles to maintain consistent speed, experiences power surges, or shows a marked decrease in performance. In some cases, the electric trike might emit unusual noises or fail to start altogether.
- Methods for Detecting and Replacing the Hall Sensor: To diagnose Hall sensor failure in an electric trike, you can start with a visual inspection, looking for any loose wires or connections related to the sensor. Electrical testing equipment can be used to check the Hall sensor’s output; an inconsistent or non-existent signal usually indicates a problem. Replacing a faulty Hall sensor involves disconnecting the old sensor, removing it from its mount, and then installing the new sensor in its place. It’s crucial to ensure that the replacement is compatible with your trike’s motor and controller. After installation, test the trike for any remaining issues with vibration or motor function to confirm that the problem has been resolved.More details please check this guide.

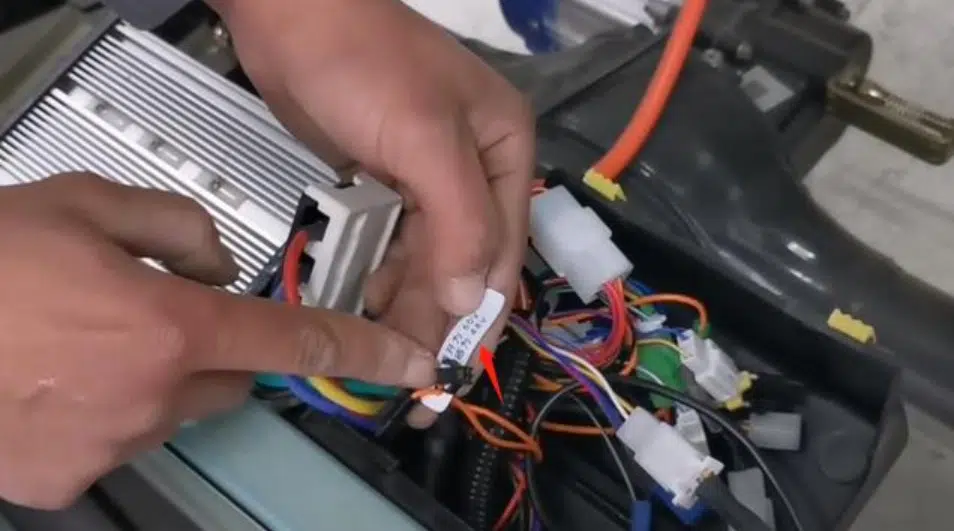

Controller Malfunction of Electric Scooter Tricycle
- Functions of the Controller: The controller, a pivotal part of electric three-wheeled vehicles, serves as the key regulator of the Hall effect switching in the motor system. It’s responsible for the precise management of power to the motor, thus controlling the vehicle’s acceleration and speed regulation. In e-tricycles, this component is crucial for ensuring smooth transitions and consistent performance, whether it’s a heavy-duty electric trike used for cargo, a commuter e-trike for daily transport, or a leisure e-trike for recreational use.
- Common Faults: Malfunctions in the controller, like program errors or data corruption, can severely impact the e-trike’s performance. These issues might manifest as unusual clicking or clacking sounds during acceleration or normal operation, indicating a disturbance in the normal motor control process. Such faults hinder the controller’s ability to accurately process and respond to inputs from various components, leading to diminished efficiency and operational issues.
- Diagnosing and Repairing Controller Issues: Diagnosing controller problems requires checking for physical damage and examining connections. In cases where internal programming issues are suspected, specialized diagnostic tools might be necessary. Resolving these problems typically involves replacing the existing controller with one that is compatible in terms of phase angle and brake level specifications. Another option is to opt for a self-learning controller that can automatically adapt to the motor’s characteristics, thus bypassing the need for specific phase alignment. It’s crucial to select a replacement that aligns well with your specific type of electric trike, be it a foldable e-trike for urban use, a fat tire electric trike for rugged terrains, or a recumbent electric trike for enhanced comfort.
Bajaj Three Wheeler Cargo Throttle Failure
When the throttle (also known as the speed control handle) of an electric tricycle encounters issues such as poor contact or deterioration in the internal Hall sensor’s performance, it can lead to noticeable problems during operation. Riders may experience unusual ‘clacking’ sounds when starting up or riding the vehicle. This issue is particularly relevant to a variety of electric tricycles, which may include electric tricycle trucks for cargo, the commonly used three-wheeler auto rickshaws for passenger transport, or personal motorized tricycle cars designed for individual use.
To diagnose this issue:
- Utilize a multimeter set to the DC voltage setting to measure the voltage between the Hall signal wire and the negative terminal. The normal voltage range should be between 1.1 to 4.2 volts, varying based on the specific throttle and controller used in the electric tricycle, such as in an electric tricycle car for adults or a 3-wheeled taxi.
- While measuring the voltage, twist the throttle. A smooth transition in voltage is expected. If the voltage fluctuates erratically – jumping high and low unpredictably – it indicates an abnormal condition.
If abnormal voltage fluctuations are detected, it suggests a need to replace the throttle. It is important to note that throttles come in two types: positive control, where voltage increases with acceleration, and reverse control, where the voltage decreases as acceleration increases. Choosing the correct type of replacement throttle is essential for the proper functioning of the electric tricycle.
Mismatch of Electric Trike Bike Motor and Controller Phases
- Impact of Phase Mismatch: When it comes to brushless motors, the alignment of the motor and controller phases is critical for proper function. If there is a mismatch in phase alignment—meaning the connections between the motor’s windings and the controller’s outputs do not correspond in the intended manner—the electric tricycle may suffer from performance issues. These can range from reduced efficiency and power output to more severe problems like the motor not running at all or running in the wrong direction.
- Steps to Adjust Phase Alignment: Normally, electric motors and controllers are connected by matching the color-coded wires of the phases and Hall sensors, resulting in a multitude of possible combinations, with only a few being correct. If you are replacing a motor or controller with original factory parts, they should connect easily with matching connectors that prevent incorrect pairing. However, when dealing with non-factory replacements or DIY, where connectors might not align, you would follow these steps:
- Identify the three thicker motor winding phase wires and the three thinner Hall sensor wires, along with the Hall power and ground wires.
- The eight wires from the motor must be correctly paired with the corresponding leads from the controller for the motor to function correctly.
- A controller designed for a 60° phase angle motor cannot control a 120° phase angle motor, and vice versa. They are not interchangeable.
- If there’s a need to determine the correct wiring without clear matching connectors, you may need to use a systematic approach to test combinations. This should be done carefully to avoid damaging the components.
- Once you have determined the likely correct combination, verify by turning on the motor and checking for smooth operation in the correct direction.
Tuk Tuk Pickup Truck Wiring or Motor Hall Wiring Issues
- Identifying and Solving Contact Problems in Wiring: Effective functioning of an electric tricycle’s motor depends largely on the integrity of its wiring, particularly the connections involving the Hall sensors. These sensors are responsible for regulating the motor’s timing, which in turn affects performance and efficiency.
How To identify wiring or Hall sensor wiring issues:
- Begin with a visual inspection of all the wiring and connectors. Look for any signs of wear, fraying, or corrosion on the wires, which could indicate a poor connection.
- Check for loose connectors that could cause intermittent contact issues. Ensure that all connections are secure and that there is no movement that could lead to wires disconnecting.
- Use a multimeter to check the continuity of the wires. A discontinuity could suggest a break in the wire, which would need repairing or replacing.
- Inspect the Hall sensor connectors and wires for signs of damage. If any wires are broken or connectors damaged, they will need to be replaced.
- After repairing or replacing any faulty wiring, test the motor by activating the throttle. If the motor does not respond or operates erratically, further investigation into the wiring or Hall sensors may be necessary.
By systematically checking and addressing each potential issue with the wiring and Hall sensors, you can ensure the proper functioning of the electric tricycle’s motor. It’s important to resolve these issues quickly, as they can lead to a decline in performance or even safety risks during operation. If you are not experienced with electrical systems, it’s advisable to seek help from a professional to avoid further damage to the tricycle or personal injury.
Conclusion
This article has outlined the five common causes that can lead to motor vibrations in electric trikes. While we’ve focused on issues like controller malfunctions, throttle failures, and wiring problems, it’s important to remember that there are other factors that could also contribute to such problems. Mechanical faults, loose steel plate screws, detached motor magnets (which often signify motor failure), or dispersed motor bearing balls, are among the other potential culprits.
For those encountering similar issues, this guide serves as a starting point to troubleshoot each problem systematically. However, for a more comprehensive understanding of electric tricycles or to delve deeper into this subject, resources like the AGL-Blog can be quite informative.
